VMWare vSphere 6 Installation on Blade Server Huawei E9000



VMWare vSphere 6 Installation on Blade Server Huawei E9000
Tutorial by Nathan Gusti Ryan ( vExpert 2013-2014-2015-2016 )



Access Huawei Management Module : 192.168.2.2 / 192.168.2.1 / 192.168.2.3



Access Huawei KVM ( Java Console ) :


Access Blade Node 1, press Ctrl-C to configure RAID on Node local disk :


Enter to manage adapter SAS3008 :



Select and Enter RAID Properties :


 Select and Enter Create RAID 1 Volume :



Select RAID Disk 0 & Disk 1 ( press space ), than press C ( Create volume ) :

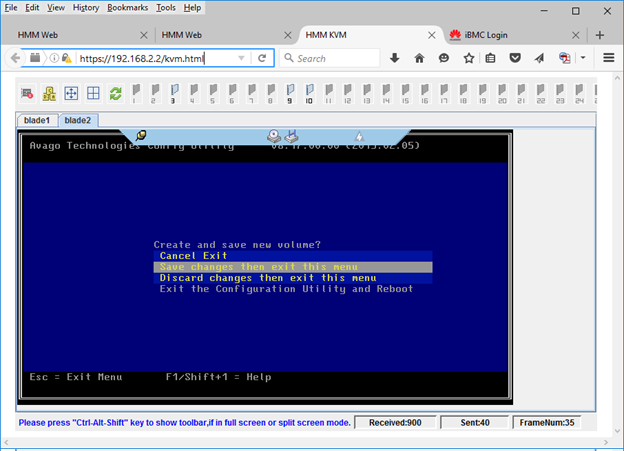

Press Esc than select Save changes then exit this menu :


Press Esc :


Press Esc than select Exit the configuration Utility and Reboot :


Click Virtual DVD, than select Image file. Than press Connect to assign ISO file as virtual DVD :



Wait for booting process :


Wait for vSphere installation startup progress :


Press Enter to Continue :


Press F11 to Accept EULA and Continue :


Select TwinSD for vSphere kernel installation than press Enter to Continue :


Select US Default keyboard layout than press Enter to Continue :


Enter Root Password and Confirm Password than press Enter to Continue :


Press F11 to start installation :


After finish installation, press Enter to Reboot :


Don’t forget to disconnect virtual DVD :


After reboot, press F2 to change network configuration ( setup IP address ) :


Access to host vSphere 192.168.2.51 :


Access to host vSphere 192.168.2.51 :
